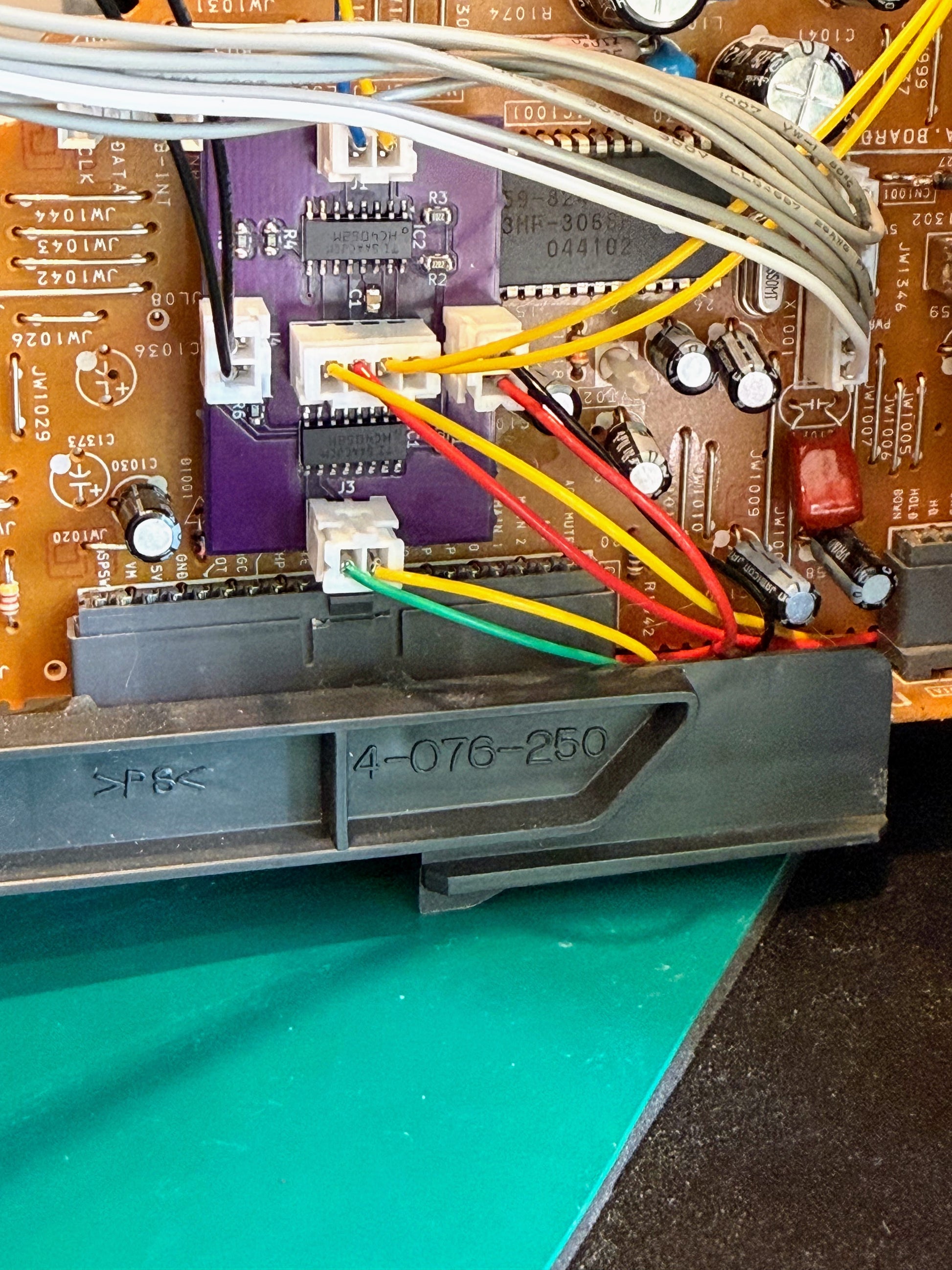

Sony Trinitron BA-5 Chassis Sync/Blanking Board

The Sony Trinitron BA-5 Chassis Sync/Blanking Board is a custom-designed PCB for BA-5 Chassis Component and RGB Multi-Mods. It provides the ability to utilize the TV's input selection while using only a small pushbutton switch (rather than a larger multi-position switch). Please see Davide Bacchet's KV-13FM12 Multi-Mod description on the CRT Database for more information.

Compatible Models: KV-13FM12, KV-13FM13, KV-13FM14. Other models may be compatible but have only been tested on the listed models. Buyer assumes risk for incompatibility with other models.

What's Included: 1x fully assembled PCB (board and shipping included in the price)

Installation Notes: Please see the above-mentioned tutorial on the CRT Database for installation information. This board is intended for experienced modders comfortable with CRT electronics. CRTs contain lethal voltages — discharge the CRT and capacitors before performing any internal work.
