Sony KV-13FM12/13/14 Component and S-Video Breakout Board

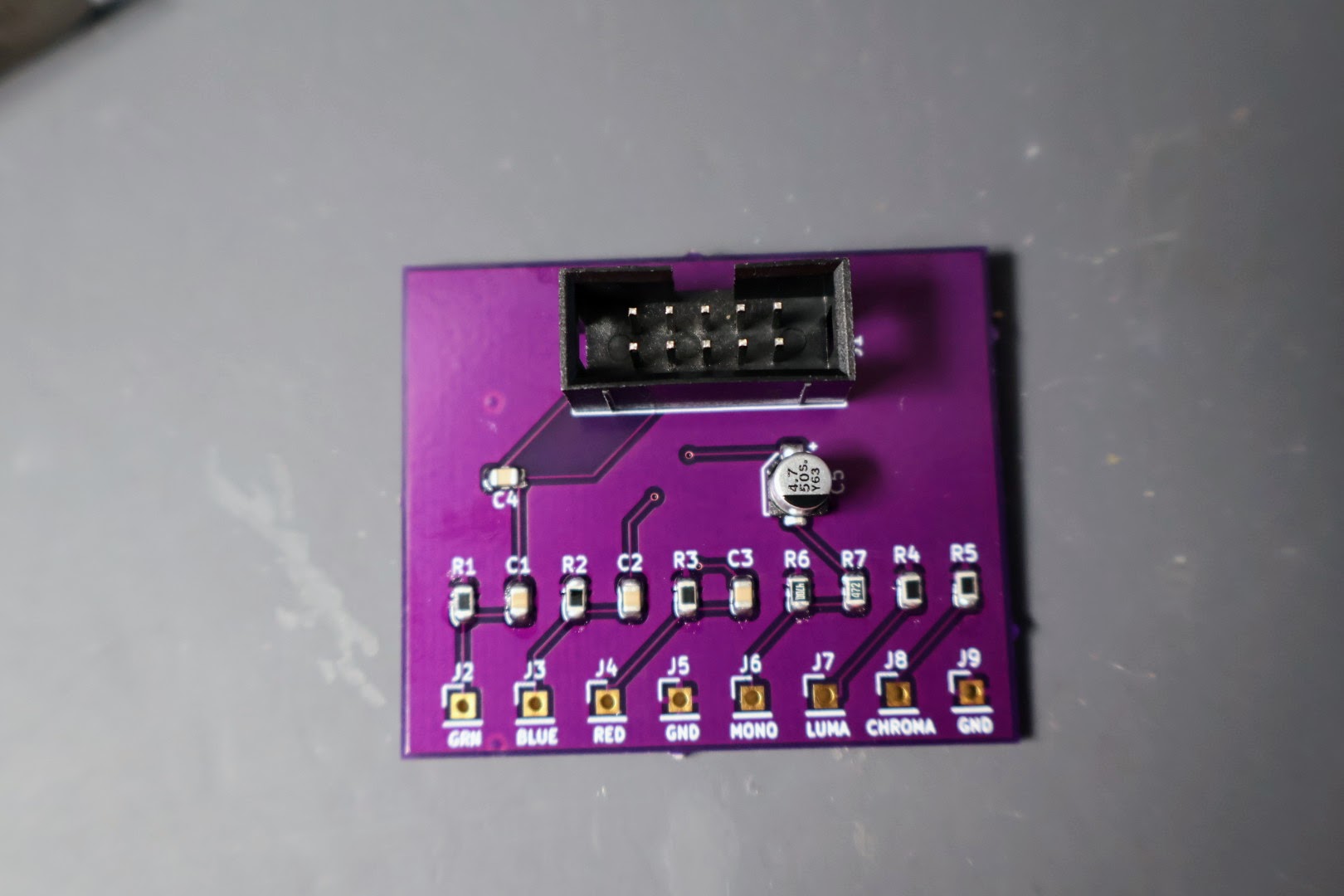

The Sony KV-13FM12 Component and S-Video Breakout Board is a custom-designed PCB for the Sony KV-13FM12/13/14. It provides all required components to recreate the missing component video/audio circuits and the S-Video circuit for multi-mods. Please see Davide Bacchet's Multi-Mod description on the CRT Database for more information.

Compatible Models: KV-13FM12, KV-13FM13, KV-13FM14. May be compatible with other BA-5 chassis models, however very few were produced with only composite and RF. Buyer assumes risk for attempted installation in other models.

What's Included: 1x fully assembled PCB, 1x IDC wiring pigtail (shipping included)

Installation Notes: Please see the above-mentioned tutorial on the CRT Database for more information regarding installation. This board is intended for experienced modders comfortable with CRT electronics. CRTs contain lethal voltages — discharge the CRT and capacitors before performing any internal work.
